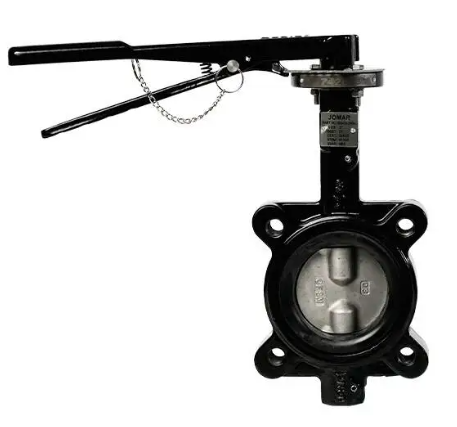

Jomar Valve BFV-Lug Viton Series valve

Jomar Valve BFV-Lug Viton Series Butterfly Valve Technical Specs
Features
Epoxy-Coated Finish
NSF EPDM, PTFE, Buna-N, Viton, or Non-NSF EPDM Seats Available
Square Stem for Direct Mount
Ideal for Mounting Pneumatic/Electrical Actuators
Easily Accepts Actuator with ISO 5211 Mounting Flange
Seat-to-Flange Seal Eliminates Need for Flange Gaskets
Designed for Commercial and Industrial Applications up to 225 PSI
Bidirectional for Dead End Service
NSF 61 & NSF 372 Certified: 2" -24" (NSF EPDM Seat Only)
Meets API 609 & MSS SP-67
Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
API 609
MSS SP-67
NSF 61 & NSF 372

Technical Specifications
ItemButterfly Valve
Size2" to 36"
Body MaterialDuctile Iron - Epoxy Coated
Seat MaterialViton
Body TypeLug Style
Handle TypeBare Stem/Lever Handle/Gear Operator
Disc MaterialCF8M Stainless Steel
Temp. Range10°F to 250°F
Pressure RatingRefer to spec sheet for inline and dead-end pressure ratings.
