Description

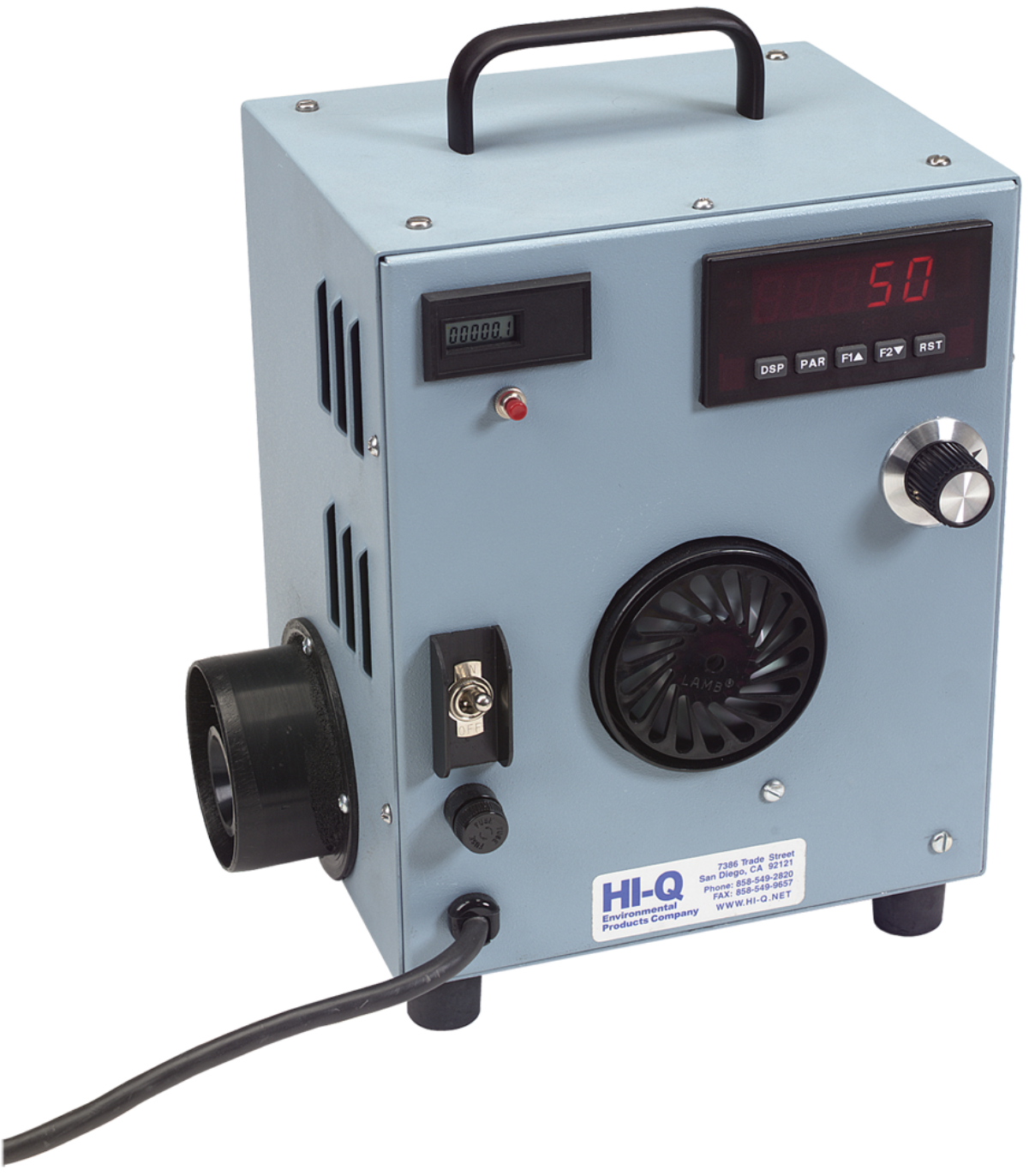

This Low-Cost/High-Performing Air Sampling System is ideal for radioiodine and particulate grab & continuous duty air sampling. The CF-900 Series air samplers are packaged in rugged aluminum enclosures weighing less than 10 pounds. Its’ light weight yet durable frame allows a single operator to transport, set up, and take a sample quickly in almost any conditions. Order the unit which best fits your needs; specify desired flow range, volumetric units (CFM or LPM), and intended filter collection media.
Note: Order CF-900-DIGITAL Series air sampler for Digital Flow Totalizer, Instantaneous Flow Rate Display, Min/Max Flow over sample period & Alarm Communications Options.
DIGITAL Series, Digital Display of Flow Rate, Total Volume, Min/Max Flow and Optional Total Volume Shut Off feature
|
Flow Range: 2-12 CFM (60-340 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 1½” Female Straight Pipe Thread for “CF” series holders. Flow Range: 2-12 CFM (60-340 LPM, special request) HI-VOL Air Sampler, 230VAC. Includes 1½” Female Straight Pipe Thread for “CF” series holders. Flow Range: 5-35 CFM (150-1,000 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 4” Dia. filter paper only holder. Flow Range: 5-35 CFM (150-1,000 LPM, special request) HI-VOL Air Sampler, 230VAC. Includes 4” Dia. filter paper only holder. Flow Range: 10-50 CFM (300-1400 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 4” Dia. filter paper only holder which accepts the “CF” series 8” x 10” holder. Flow Range: 10-50 CFM (300-1400 LPM, special request) HI-VOL Air Sampler, 230VAC. Includes 4” Dia. filter paper only holder which accepts the “CF” series 8” x 10” holder. |
Product Highlights
- Dependable Low-Cost/High-Performance Air Sampling!
- 2-Stage Blower, Brushed Motor
- Manual Speed Control
- Elapsed, Resettable, Electronic Timer
- Instantaneous Flow Reading
- For Continuous or Intermittent Use
- Portable/Rugged Housing Weighing Less Than 10 Pounds
- NRTL listed Models: CF-901, CF-902, & CF-903
- Total Volume Shut Off Option (-TS) for Digital Series Samplers.
-
Specifications
Motor/Pump: Brushed, 2-Stage Centrifugal Blower. Housing: 8¼” x 10” x 11½”, aluminum cabinet, primed and painted with two component polyurethane paint. Max Flow Rate: (CF-901) 12 CFM (w/ FP2063-20) &
6.5 CFM (w/ FP5211-20)Max Flow Rate: (CF-902) 35 CFM (w/ FP2063-102) &
22 CFM (w/ FP5211-102)Elapsed Timer: Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery. Minute timer upon request. Unit Net Weight: 9.5 lbs. Shipping Weight & Dimensions: 12 lbs., one box.
11¼” x 10” x 13¼”CF-900-Series Power Specifications: 115 VAC, 50/60Hz, 15.0 Amp
230 VAC, 50/60Hz, 7.0 AmpFilter Holders & Adapters: See Filter Holders Flow Calibrator: See Air Flow Calibrators Filter Paper: See Filter Paper For Air Sampling Filter Cartridges: See Analytical Cartridges Annular Kinetic Impactors: See Size Selective Inlets
