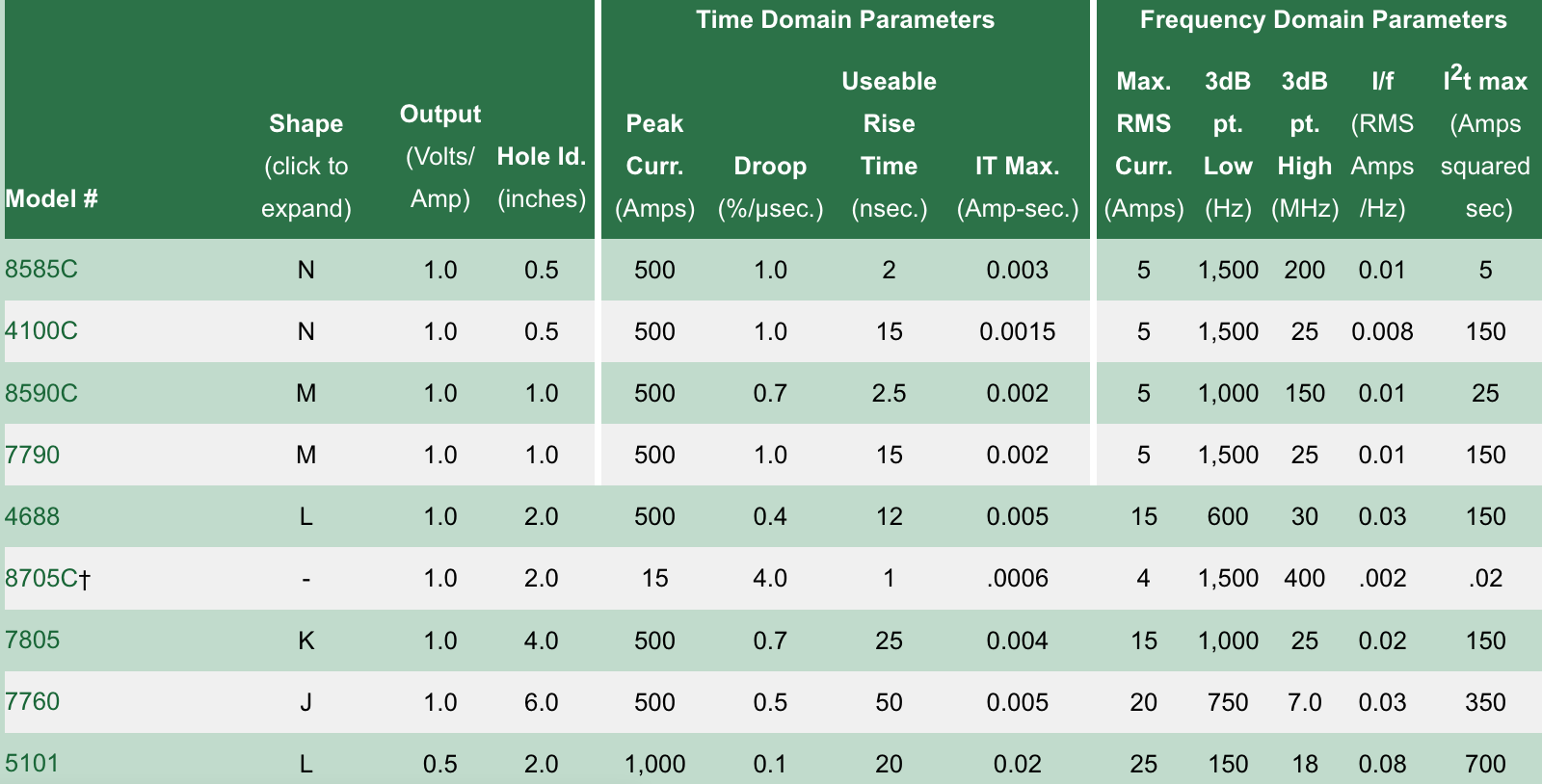

Accuracy ±1% or better, initial pulse response for all models, with a high impedance load such as 1 megOhm in parallel with 20 pF. A 50 Ohm termination will reduce the output to half. All models listed below come with a BNC connector except as noted and are to be used with a 50 Ohm coaxial cable. The current monitor case is conductive and not insulated. Adequate insulation must be provided on the conductor being monitored. To avoid electrical shock, do not mount or remove the current monitor from a live conductor.

Sensitivity 0.1 V/A ±1% Output resistance 50 S Maximum peak current 5000 A Maximum rms current 50 A Droop rate 0.015 %/:s Useable rise time 20 ns (approximate) Current time product 150 mAAs maximum Low frequency 3dB point 25 Hz (approximate) High frequency 3dB point 20 MHz (approximate) I/f figure 0.7 Ar ms /Hz Output connector BNC (UG-290A/U) Operating temperature 0 to 65 o C Weight 13 oz (360 gm)
