Blancett B220210 Flow Meter

Blancett QuikSert Turbine Flow Meter for Liquids
Part:
QuikSert

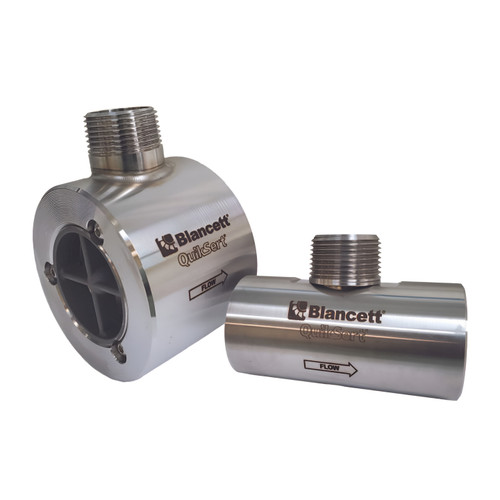

The Blancett QuikSert In-Line Turbine flow meter provides the high accuracy and rigorous design of the standard Blancett turbine, but in a wafer-style mounting configuration.
Size Range | 3/8...10 inch
Temperature Range | -150...350°F
Flow Range | 0.6...5000 gpm
Pressure Range | Up to 3705 PSIBlancett QuickSert Turbine Flow Meter for Liquids
The QuikSert in-line turbine flow meter was developed for liquid applications where accuracy and dependability are needed. QuikSert’s stainless steel body incorporates a helical turbine with tungsten carbide shaft and bearing. It provides an efficient, long service life and a cost-effective solution for your measurement requirements.

Simple in design and construction, QuikSert uses modified upstream and downstream flow straighteners for a high degree of flow accuracy. Its between-the-flange design eliminates the need for mating flanges, requiring less space in the flow line, lowering costs for easy, one-man installation.

Features
Durable Design. Features a 316 stainless steel body, which incorporates a helical turbine with tungsten carbide shaft and bearing to provide a long service life.
Reliable Performance. Maintains a +1% accuracy rate, even in aggressive environments where accuracy and dependability are needed.
Streamlined Installation. Built with a between-the-flange design and wafer-style mounting configuration for simple installation in limited space requirements.
