Seametrics EX150/EX250 Series Hot-Tap Insertion Magmeter Insertion Magmeter

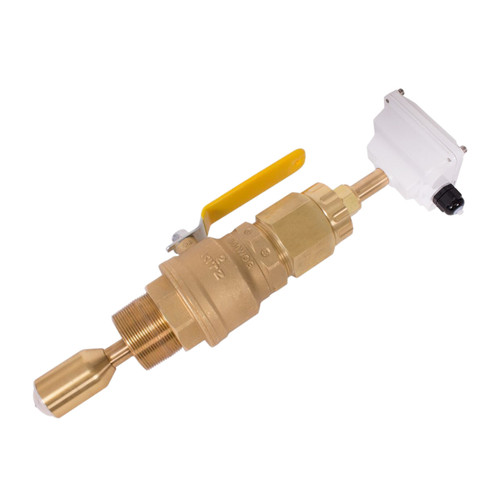

Seametrics EX150/EX250 Series Hot-Tap Insertion Magmeter
Part:
EX150/250 Series
The EX150/250 Series is an adjustable depth hot-tap insertion magmeters that fit 3” to 48” pipe (up to 72” optional).
No moving parts
Durable
Adjustable depth
Brass or stainless steel
NSF/ANSI standard 61 & 372 (stainless only)Seametrics EX150/EX250 Series Hot-Tap Insertion Magmeter
The “hot-tap” models (EX15x/25x) can be installed or serviced without shutting down the line by means of a 2” full-port isolation valve that comes with a nipple for installation on the pipe fitting.

Features
Isolation valve allows installation and removal under pressure
Useful in large water utility pipe and other applications where shutdown is not an option
EX150 fits pipe from 3″ to 10″
EX250 fits pipe from 10″ to 48″
Meter extends only about 1/8 of pipe diameter, minimizing potential for clogging with debris
In most applications, installation tool not necessary due to small tube diameter
Available in brass or 316 stainless steel
Standard valve material is brass, with stainless optional
Certified to NSF/ANSI 61 Standard (stainless version)
Applications
3” - 48” pipe (up to 72” optional)
Clean or “dirty” liquids
Conductive liquids
Municipal
Industrial
Irrigation
