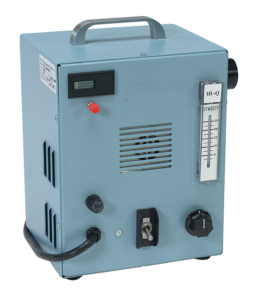

HI-Q CF-970T Series Air Samplers
Description
Product Highlights
Timer Controlled Grab Sampling
Timing from .01 Sec. to 9,999 Hours
Six Programmable Operating Modes
2-Stage Blower, Brushed Motor
Manual Speed Flow Control
For Continuous or Intermittent Use
Instantaneous Flow Reading
Motor Cooling Fan
Air Sampling with Programmable Digital Timer
Specifications
Motor/Pump: Brushed, 2-Stage Centrifugal Blower.
Housing: 8¼” x 10” x 11½”, aluminum cabinet, primed and painted with two component polyurethane paint.
Max Flow Rate: (CF-971T) 12 CFM (w/ FP2063-20) &
6.5 CFM (w/ FP5211-20)
Max Flow Rate: (CF-972T) 35 CFM (w/ FP2063-102) &
22 CFM (w/ FP5211-102)
Max Flow Rate: (CF-973T) 60 CFM (w/ FP2063-810, 8” x 10”) &
55 CFM (w/ FP5211-810, 8” x 10”)
Unit Net Weight: 11 lbs.
Shipping Weight & Dimensions: 13 lbs., one box
11¼” x 10” x 13¼”
CF-970T-Series Power Specifications: 115 VAC, 50/60Hz., 15.0 Amp
230 VAC, 50/60Hz., 7.0 Amp
Filter Holders & Adapters: See Filter Holders
Flow Calibrator: See Air Flow Calibrators
Filter Paper: See Filter Paper For Air Sampling
Filter Cartridges: See Analytical Cartridges
Annular Kinetic Impactors: See Size Selective Inlets
Description
The CF970T-Series Air Samplers provide sampling time ranges from 0.01 seconds to 9999 Hours. Time ranges and operating modes are selected by front panel programming. There are eleven programmable time ranges and six programmable operating modes (i.e.: delay, interval, single shot…). The programmable versatility makes the CF-970T ideal for grab and intermittent assay of particulate and radioiodine. Specify intended filter media type and desired flow ranges/units upon ordering.
Choose a Model
CF-971T (115 VAC)
Flow Range: 2-12 CFM (60-340 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 1½” Female Straight Pipe Thread for “CF” series holders.
CF-971T/230 (230 VAC)
Flow Range: 2-12 CFM (60-340 LPM, special request) HI-VOL Air Sampler, 230VAC. Includes 1½” Female Straight Pipe Thread for “CF” series holders.
CF-972T (115 VAC)
Flow Range: 5-35 CFM (150-1,000 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 4” Dia. filter paper only holder.
CF-972T/230 (230 VAC)
Flow Range: 5-35 CFM (150-1,000 LPM, special request) HI-VOL Air Sampler, 230VAC. Includes 4” Dia. filter paper only holder.
