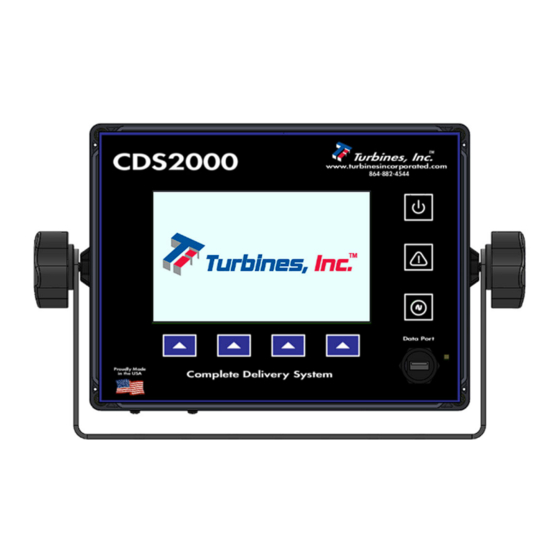

CDS2000 – Cryogenic Flow Totalizer
10 point linearization
Realtime calculations and graphics
Pump housing temp sensing or leak detection
The CDS2000 is a next generation, full color industrial grade LCD touch screen system that delivers industry leading features while maintaining a user-friendly simplicity of operation.Frequency range: 0-2500Hz
Sensitivity: 15mv RMS @ 101Hz (min); 50mV RMS @ 500Hz (min); 400mV RMS @ 2.5 KHz (min)
Impedance: Approx. 14K Ohms
Noise immunity: High frequency roll off, FCO @ 2.5KHz
Pickup coil failure detection
Optional dual pickup
Sensor Inputs    Temperature probes, product & pump housing:
*100, 1K and 10K RTD inputs, silicon diode and 4-20 mA
*RTD probe:.00385U/U C European din curve
*Stabilized AFE precision current source
Power: Continuous monitoring of main power, backup Super Cap & sensors.
Pressure Transducer, 2-wire 4-20mA; loop excitation
Physical &
Environmental    Operating temperature: -40 to 50C
Humidity: 5-95%, non condensing
Sealed, shock vibration tested enclosure
Dimmensions: 10.5: (L) X 8.9” (H) X 2.75” (W)
Weight: 4.5 lbs without bracket; 5.25 lbs with bracket
Power    *9-26Vdc with self-resetting fuse (polarity insensitive)
*1A @ 12v average power consumption
*Transient protection
*Internal super capacitor allows continuous operation for up to 10 sec. after power loss for memory retention
Linearization    10 Point
