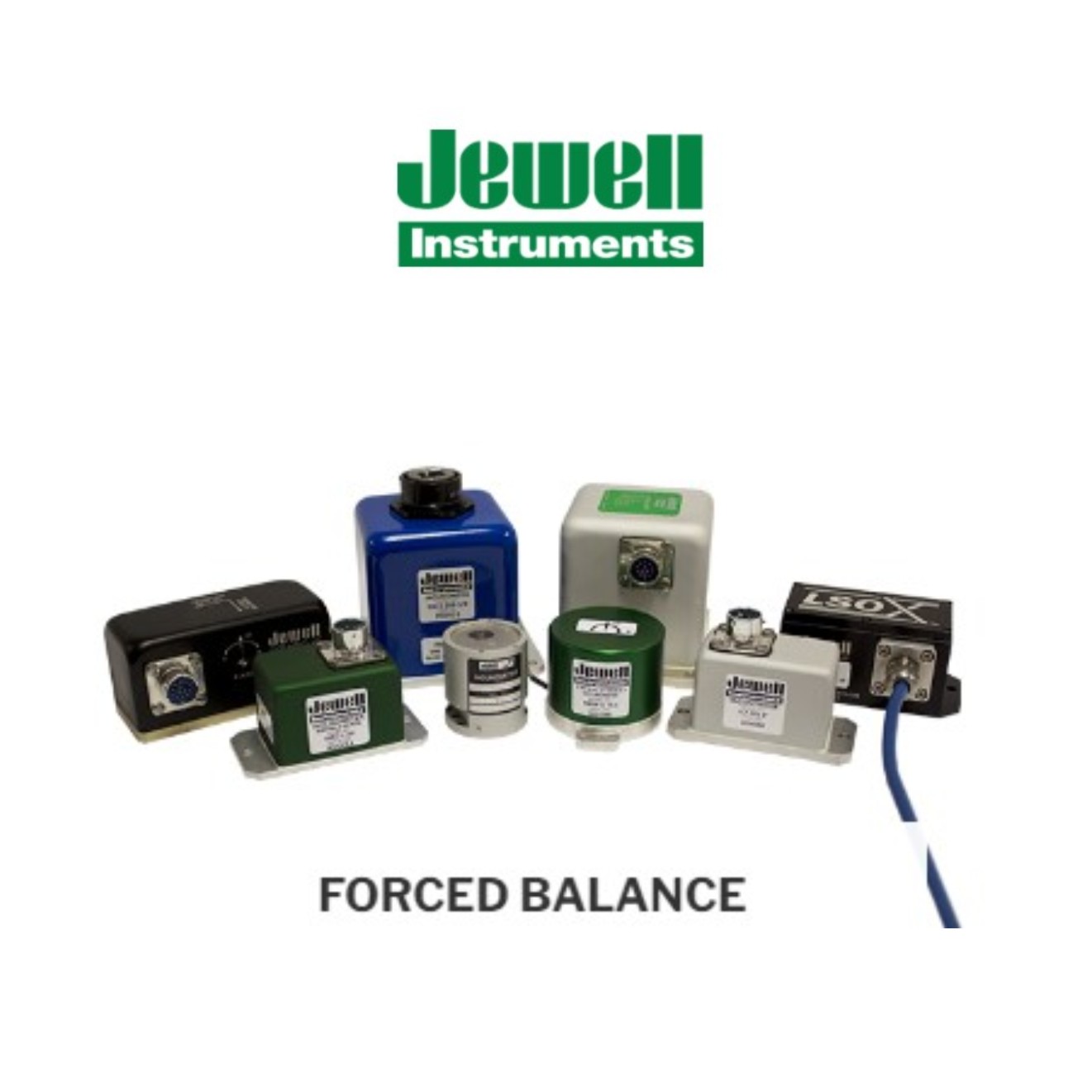

Jewell Instruments LCF-100-14.5 sensor

The Jewell LCF Series flexure suspension servo fluid damped inclinometer is a ±1° to ±90° device designed for applications where high levels of shock and vibration are present. LCF units are characterized by excellent turn-on repeatability and very low hysteresis. This unit is available with a pin terminal connection or a 6-pin cable connection.

Dimensions    3.10 × 1.525 in
Features
• Direct Bogie Mount
• 3-30 Hz Bandwidth
• Milligram Bias and Scale Factor
• High Level ± 5Vdc Output
• -40°C to +80°C Temperature Rating

Applications
• Heavy Construction, Grading
• Ship and Barge Leveling
• Deviation Surveys
• Continuous Casting for Steel Industry
• Weapons Platform Leveling
• Aircraft Flight Control
• Robot Vertical Referencing
• Auto Manufacturing Suspension Install
• Geophysical Low Range Tilt Sensing
• Platform Orientation
• Dam Sluice Gate Control
