Protecting your engine from contaminants is essential. More precise engineering leaves less room between machine components than before, so choosing the correct filter is more important than ever.

Cat Advanced High-Efficiency Engine Oil Filters have increased contamination control without giving up capacity. They meet stricter emission requirements and are available as an upgrade for some Standard Efficiency Filters when better filtration is favorable.

The Cat 1R-1808 filter contains an improved, higher efficiency filter media. This media is designed to increase contaminant capturing efficiency while maintaining excellent dirt holding capacity characteristics.

FEATURES:

Spiral roving and beading for pleat stability to better trap and hold particles
Properly cured filter media for long performance and life
One-piece aluminum base plate
One-piece molded urethane end caps to eliminate leaks

Caterpillar manufactures over 80 percent of its liquid filter volume on an automated assembly line. This strict quality control eliminates variation from part to part.

The CAT 1R-1808 filter offers better filtration efficiency than standard oil filters, improved engine cleanliness, and longer component life.

CROSS REFERENCE

Agco 504594D1, Baldwin B7299, Caterpillar 1R1808, 2752604, 275-2604, Claas 7983030, Donaldson P551808, Luberfiner LFP4005RN, Napa 7792, Nelson Winslow 3933642ZF, Wix 57792, Fleet Guard LF691A, LF3566, LF9691A

Specifications for Cat 1R1808 Engine Oil Filter:

Efficiency Rating: Advanced Efficiency
Installation Type: Spin-on
Diameter Length (mm): 135.8

COMPATIBLE MODELS:

GENERATOR
3412 SR4 SR4B SR5 SR500

WHEEL-TYPE LOADER
966G II 966H 966K 966K XE 966L 966M 966M XE 972H 972K 972L 972M 972M XE 980C 980F 980F II 980G 980G II 980H 980K 980K HLG 980L 980M 982M 982XE 986H 988B 988F 988F II 988G 988H 988K 988K XE 990 990 II 990H 990K 992 992C 992D 992K 993K

WHEEL TRACTOR-SCRAPER
621B 621E 621F 621G 621H 621K 621K OEM 623B 623E 623F 623G 623H 623K 623K LRC 627E 627F 627G 627H 627K 627K LRC 631D 631E 631G 631K 633D 633E II 637D 637E 637G 637K 639D 651 651B 651E 657 657B 657E 657G

MARINE PRODUCTS
3406E 3408 3408B C9

MATERIAL HANDLER
C7 C9 MH3295

LOAD, HAUL, DUMP
R1600G R1600H R1700G R1700K R2900 R2900G R3000H

MOTOR GRADER
120H 12H 12M 2 12M 3 12M 3 AWD 135H 140H 140M 140M 2 140M 3 140M 3 AWD 143H 14H 14L 14M 14M-3 14M3 150 160 160H 160M 160M 2 160M 3 160M 3 AWD 163H 16G 16H 16H NA 16M 16M3 18M3 24 24H 24M

OEM SOLUTIONS
3412C 3516B C13B TR35

ARTICULATED DUMP TRUCK
725 725C 725C2 730 730C 730C2 730C2 EJ 735 735 OEM 735B 735C 740 740 GC 740B 740C 745 745C D350E D350E II D35HP D400 D400D D400E D400E II D40D

TRACK-TYPE TRACTOR
D10 D10N D10R D10T D10T2 D11 D11R D11T D6 D6 XE D6R D6R II D6R III D6R LGP D6R STD D6R XL D6T D6T LGP D6T LGPPAT D6T XL D6T XL PAT D6T XW D6T XW PAT D6XE D7 D7E D7E LGP D7R D7R II D7R LGP D7R SERIES D7R XR D8 D8 GC D8L D8N D8R D8R II D8T D9 D9 GC D9R D9T

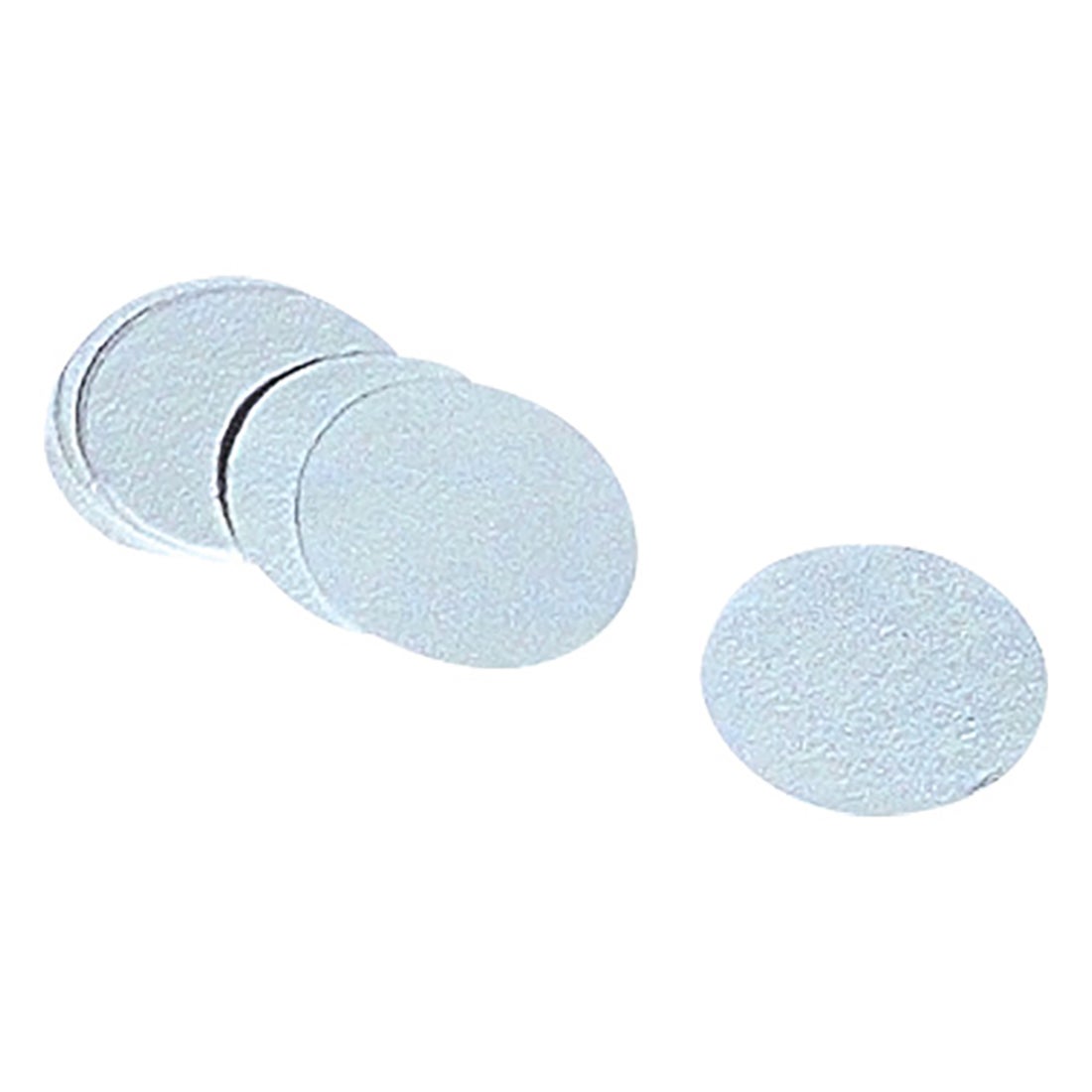

Material	Gelatin
Diameter	37-mm
Support Included	No
Autoclavable	No
Special Features	Filters only; pre-sterilized by gamma irradiation
