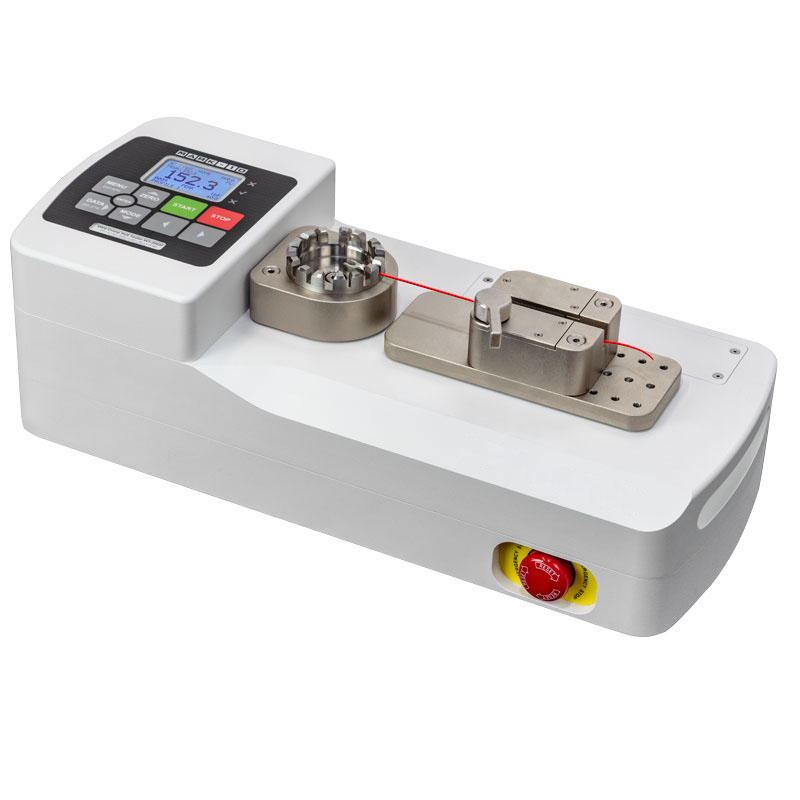

The WTPT provides long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The analog bar graph on the backlit, LCD aids users by providing the resultant force’s current position compared to the full-scale range.
The WTPT has four operations modes: Track, Peak, First Peak, Auto-Peak: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a programmed period. Additional tolerance function, available in all modes, with programmable thresholds and pass/fail icons produces live test feedback allowing instant determination of the results.
Every tester comes standard with USB and RS-232 outputs. The WTPT’s software enables the uploading of data and statistics with its auto-calculation of the selected values. These excellent features make the WTPT-1000 Electrical Terminal Wire Testers a versatile addition to the production, R & D, and quality control departments.
- Fast action clamp with a cam-gripping mechanism enables quick testing of samples
- Rotating terminal wheel for 10 different diameter size wires from 0.03 to 0.25” (0.8-6.35 mm)
- Four operations modes: Track, Peak, First Peak, Auto-Peak
- NPN, USB and RS-232 outputs
- 1000 data point memory storage that can be downloaded to the free software program
| Capacity | 224.8 lbf (100 kgf) |
| Accuracy | ± 0.2% of FS |
| Resolution | 0.01 lbf, 0.1 N, 1 ozf, 0.01 kgf |
| Wire Size Dia. Range | 0.03 - 0.25 in; 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.35 mm; AWG 30 - AWG 3 |
| Minimum Sample Length | 5.5” (140 mm) |
| Maximum Elongation | 1.7” (44 mm) |
| Units of Measure | N, kgf, lbf, ozf |
| Measure Modes | Track, Peak, First Peak, Auto Peak |
| Overload Protection | 120% of Full Scale |
| Sampling Rate | 2 kHz (Track mode); 8 kHz (Peak Mode); 8 kHz (First Peak); 8 kHz (Auto Peak) |
| Display | 160*128 Dot matrix backlit LCD |
| Display Update Rate | 100ms |
| Memory | 1000 data points |
| Output | USB, serial port RS-232, High and low limit NPN |
| Battery Indication | Battery icon flashes when low |
| Battery Life | Approx. 25 Hours continuous on full charge |
| Charger/Adapter | Universal USB charger, input 110 - 240 V ac 50/60 Hz |
| Power | 3.6 VDC 1600 mAH Ni-MH battery pack |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Humidity Limit | 20 - 80% RH |
| Dimensions | 12.9 x 5.4 x 9.8” (327 x 136 x 249 mm) |
| Weight | 10.4 lb (4.7 kg) |
| Shipping Weight | 12.8 lb (5.8 kg) |
| Warranty | 1 year |
| Certification | CE, RoHS |
| Included Accessories | USB cable, charger adapter, cal. cert |
| Optional Accessories | RS-232 cable, printer cable |
