Extech 382252 Earth Ground Resistance Tester Kit
The Extech 382252 Earth Ground Resistance Tester Kit can measure Earth Ground Resistance in 3 ranges (20 ohm/ 200 ohm/2000ohm), Earth Voltage and Resistance (up to 200k Ohms and AC and DC voltage). It has a large dual display with backlight, automatic zero adjustment and a test hold function.

The Extech 382252 boasts a number of useful features for the operator including Auto Power off, Over range and low battery indication. This Earth tester was designed to meet EN61010-1 safety standards. This Earth resistance tester comes as a complete kit and is ready to use in minutes.

Key Features
Earth Ground resistance ranges: 20Ω/200Ω/2000Ω
Resolution: 0.01Ω/ 0.1Ω/1Ω
Test Current / Frequency: <2.5mA / 820Hz
AC Earth Voltage / Frequency: 0 to 200VAC / 50 to 400Hz
DC Voltage: 0 to 1000V
Resistance: 0 to 200kΩ
Continuity: 40Ω
Battery powered by 6 x AA 1.5V batteries
Auto power off, over range and low battery indication
Large dual display with backlight
Test hold function for easy operation
Automatic Zero adjustment
Product Order Code: 382252

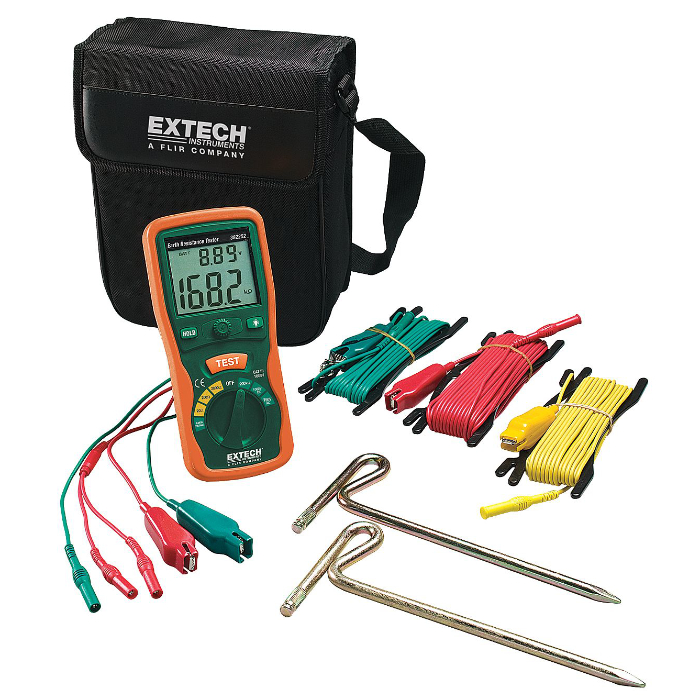

What's In The Box?
Extech 382252 Earth Ground Tester
2 x 22cm Earth rods - Zinc plated iron
3 x Ground rod test cables - Red (15m), Yellow (10m), Green(5m)
2 x Test leads for Ground Resistance with alligator clips (Red and Green) (1.5m)
2 x Test leads for Voltage/Resistance (Black and Red) (1m)
Carrying case
Six 1.5V AA batteries
User manual
