SPECIFICATIONS:
Power:

700 W Total to 3 kW Total
Voltage Range: 120 - 480 V
Max Line Current: 15 A
Tubing:

.313” OD (5/16") (7.9 mm)
.020” Wall (.5 mm)
Overall Process Tube Length: 137” (3480 mm)
316L Stainless Steel (standard)
Inconel (optional upgrade)
Passivated or Electro-Polished (optional upgrades)
Max Pressure: 2100 psi (144 bar)

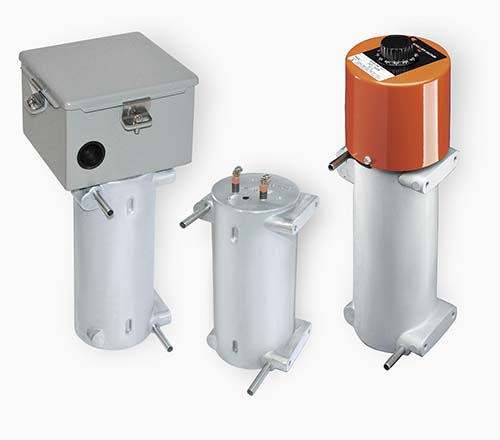

Enclosures:

No Enclosure
NEMA 1 (general-purpose/dust-proof)
NEMA 4 (moisture-resistant)
Max Working Temperatures:

No Enclosure: 662°F (350°C)
NEMA 1 (dust-proof/general-purpose) no thermostat: 608°F (320°C).
NEMA 1 (dust-proof/general-purpose) with thermostat: 250°F (121°C)
NEMA 4 (moisture-resistant) no thermostat 482°F (250°C).
NEMA 4 (moisture-resistant): with thermostat: 250°F (121°C)
Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.
Sensors & Controls:

K or J Type Thermocouples
Resistance Temperature Detectors (RTDs)
Snap-Action High-Limit Switches
Enclosure-Mounted Thermostats
Available Accessories:

Insulating Jackets
Compression Fittings
