Monoblock® – X-Ray Sources

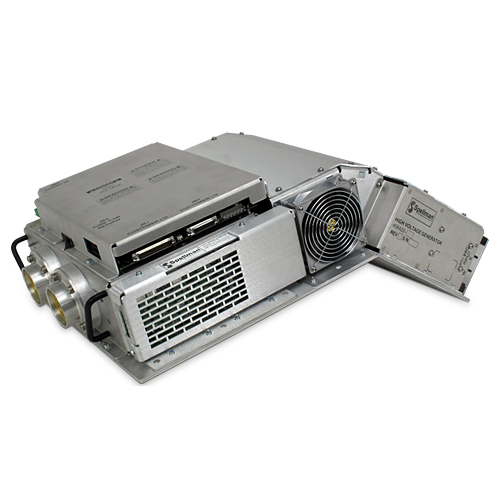

Spellman Monoblocks® are turnkey X-Ray sources comprised of a high voltage power supply, filament power supply, control electronics and integrated X-Ray tube packaged in a simple, cost effective assembly. Monoblocks® are used in various medical and industrial X-Ray analysis applications, both stationary and rotating, and provide outstanding stability and performance in a compact, lightweight, easy to install package.

Monoblock® is a registered trademark of Spellman High Voltage Electronics Corporation.

Monoblock® Cooling Recommendations
Monoblock® Warm-up/Seasoning Procedure
Monoblock® FAQ’s
Monoblocks®
Power
Model
Voltage Range
4 W-65 W    uXRB130P65
20kV - 130kV
20 W-50 W    XRB011
35kV - 80kV
100 W    XRB100N100
40kV - 100kV
100 W    XRB80N100
20kV - 80kV
100 W    XRB80PN100HR
40kV - 80kV
100 W-500 W    XRBD
80kV - 160kV
100 W-500 W    XRBHR
80kV - 100kV
200 W    XRB180PN200
90kV - 180kV
300 W    XRBe80PN300
40kV - 80kV
320 W    XRB80PN320
80kV - 160kV
400 W    XRB200PN400
100kV - 200kV
400 W    XRB200PN400/2
100kV - 200kV
480 W    XRB160PN480/1
80kV - 160kV
480 W    XRB160PN480/2
80kV - 160kV
480 W    XRB160PN480/CT
80kV - 160kV
600 W    XRB150PN600
40kV - 150kV
688 W    XRB160PN688/CT
80kV - 160kV
900 W    PDM90PN900
90kV - 90kV
3.5 kW    MMB125PN3.5
40kV - 125kV
