Ensure consistency in your manufacturing process with the Tensitron WX-1 tension meter. The Tensitron WX-1 Digital Fabric and Web Tension Meter measures the tension of wide, flexible, flat materials with thickness up to 1/8 inch. Use the WX-1 gauge to control quality for paper, film, plastic sheets, fabric, web, loom beams, metal foils, or winding electrical condensers

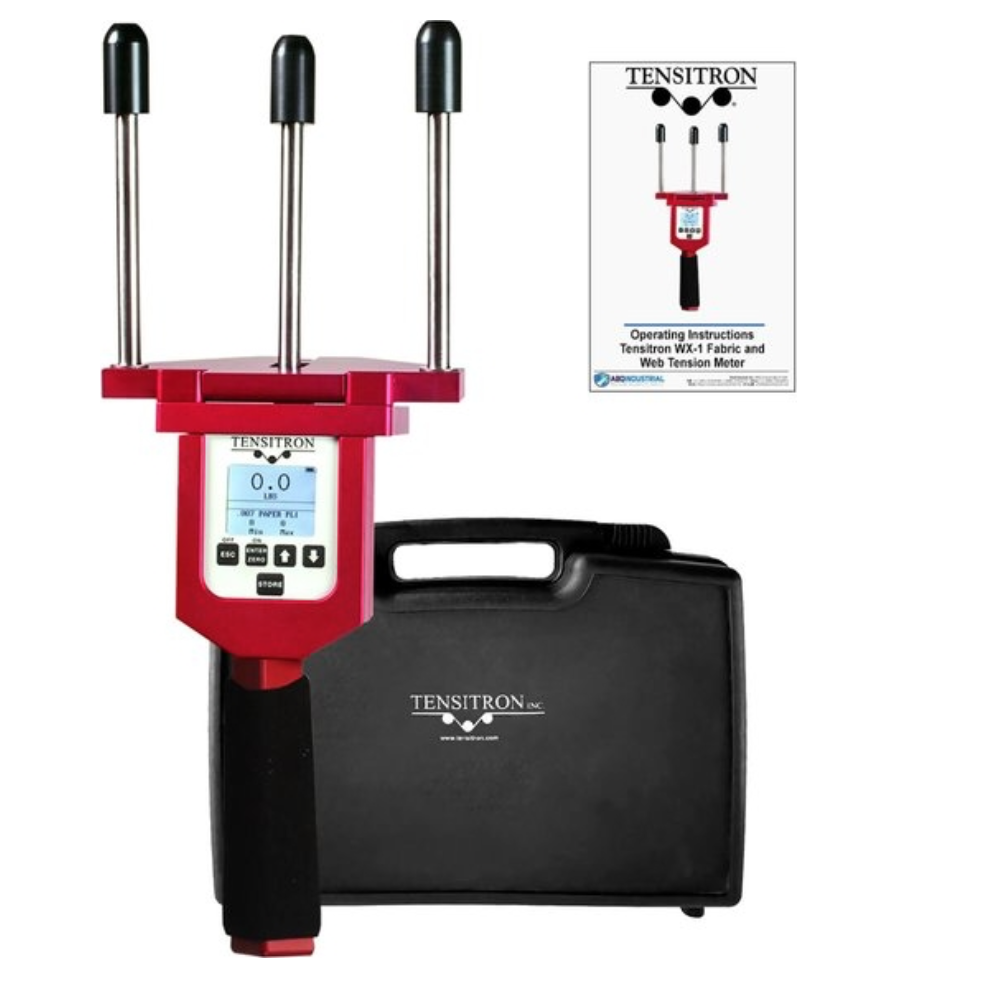

Kit Contents

Tensitron WX-1 Fabric and Web Tension Meter
Re-chargeable NIMH battery assembly
NIST-Traceable Calibration Certificate
Power supply
Operating Instructions
Durable lightweight carrying case with protective foam inserts

Features

Fast & Versatile

• Quickly and easily test tension
• Quick, easy, one-handed operation
• Versatile measurement for:
  • Fabric
  • Paper
  • Film
  • Plastic sheets
  • Metal foils
  • Conveyor belts

Accurate

• Improve safety and performance
• Measures wide, flat materials
• Custom-calibrated for your application
• Tension ranges from 0.5 to 1000 lb.
• Selectable units (lb, kg, or daN)
• Analog or serial output (optional)

Dependable

• Save time and costs with durable construction
• Long-lasting durable construction
• Continuous or single-point data storage
• Includes carrying case and NIST-traceable calibration certificate

Convenient

• User-friendly and easy to use
• Onboard data statistics
• Lightweight, portable
• Data averaging function evens out readings in fast-moving applications
• Easy-to-read, digital display
• Color-bar graphic provides quick visual of tension

• Specifications

• Accuracy	Standard accuracy is +/- 2% full-scale. Accuracy may vary depending on the properties of the material measured.
  Rollers	1.44” overall length (contact surface 1.15”) at the end of 4” extensions
  Data Output	Request Analog (Option A) OR RS-232 Serial (Option E)
  Battery	NiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge
  Warranty	One year, against factory defects

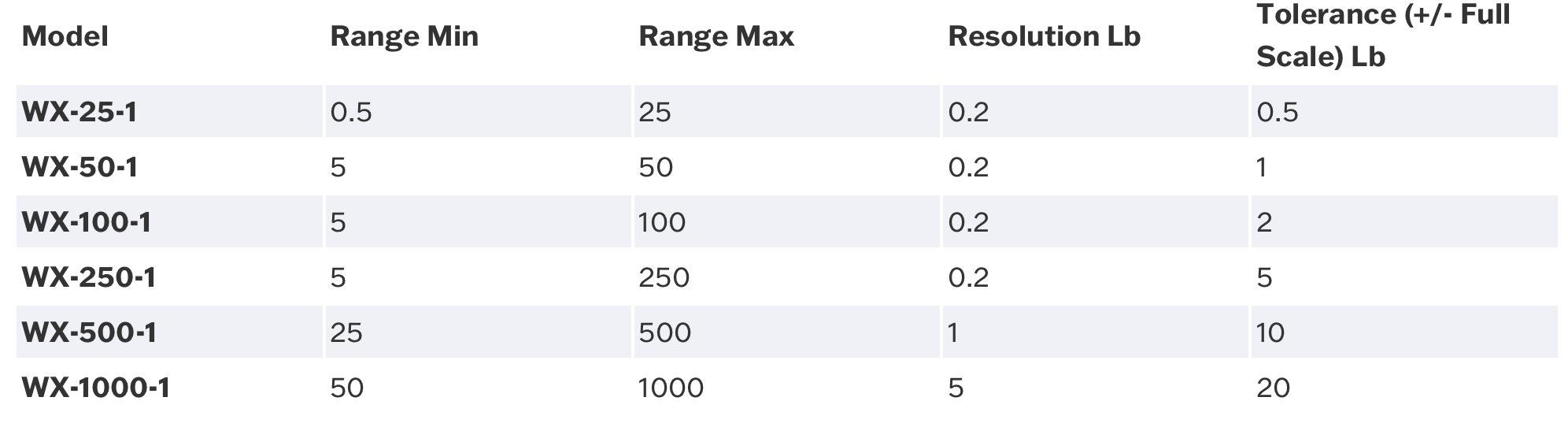

• Comparison Chart

•
• *Contact about measuring more rigid materials and/or diameters up to 3/4 in. (19mm)
