ElektroPhysik 82-051-0054 MikroTest-Standards Coated Metal Plates for Calibration Of MikroTest Coating Thickness
Brand: ElektroPhysik
Model: 82-051-0054
Description
ElektroPhysik MikroTest-Standards Coated Metal Plates for Calibration of MikroTest Coating Thickness
Electropating Thickness Gauge utilizing the coulometric principle, a de-plating method conforming to DIN 50 955 and ISO 2177

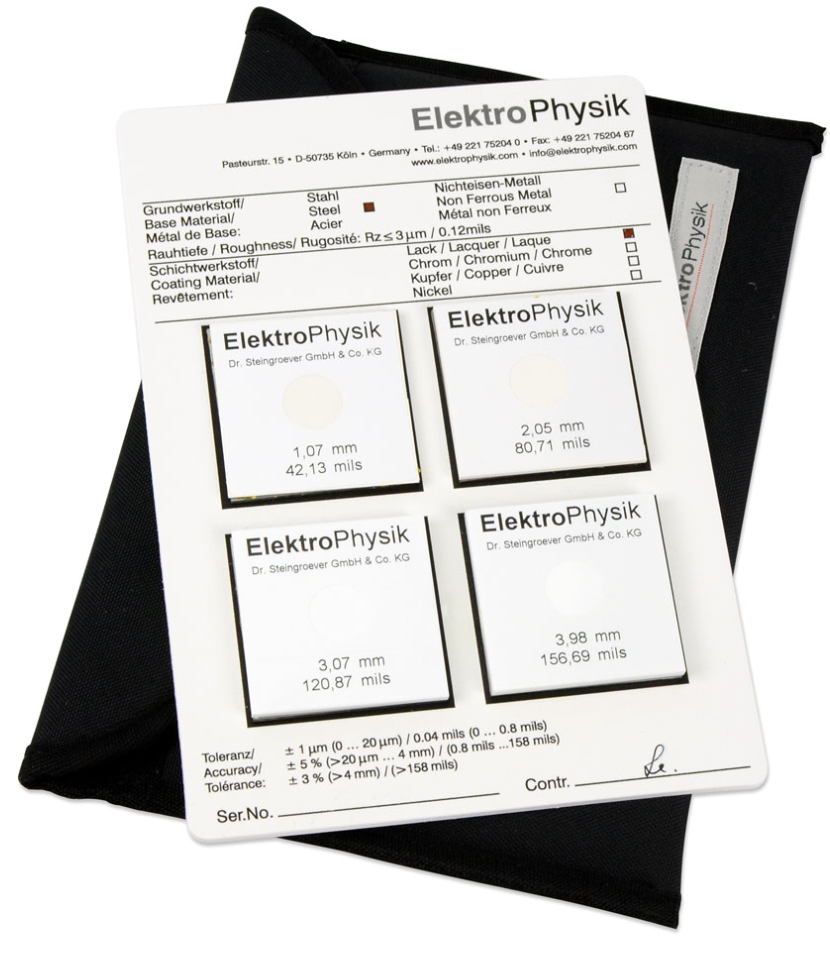

Verify or calibrate your Mikrotest Coating Thickness Gauge and other ferrous coating thickness gauge using these precision standards. All sets are supplied with 4 coated plates marked with mil and micron/mm values. The plates are attached to a rigid plastic plate with printed tolerances and serial number.
Features
Calibration Certificate is OPTIONAL
Each set is serialized
Supplied in padded pouch
Specifications
| Part Number | Gauge Model | Plate 1 | Plate 2 | Plate 3 | Plate 4 |
| 82-051-0054 | G | GM | 0 | 10 µm | 0.40 mils | 20 µm | 0.80 mils | 40 µm | 1.60 mils |
| 82-051-0055 | F | FM | 0 | 40 µm | 1.60 mils | 120 µm | 4.7 mils | 400µ | 16 mils |
| 82-051-0056 | S3 | S3M | 220 µm | 8.60 mils | 320 µm | 12.60 mils | 1000 µm | 40 mils | 2000 µm | 80 mils |
| 82-051-0057 | S5 | S5M | 1000 µm | 40 mils | 2000 µm | 80 mils | 3000 µm | 120 mils | 4000 µm | 160 mils |
| 82-051-0058 | S10 | S10M | 3mm | 120 mils | 4mm | 160 mils | 5mm | 197 mils | 8mm | 315 mils |
| 82-051-0060 | NiFe50 / NiFe50M | 0 | 10 µm | 0.40 mils | 20 µm | 0.80 mils | 30 µm | 1.20 mils |
