The NDT DPG-3 Enhanced Digital Pit Depth Gauge is the new and improved spring loaded digital pit gauge with two exchangeable knife edge bases: a standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions for versatility based on your needs. Simple to use, the NDT DPG-3 Enhanced Digital Pit Depth Gauge is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.

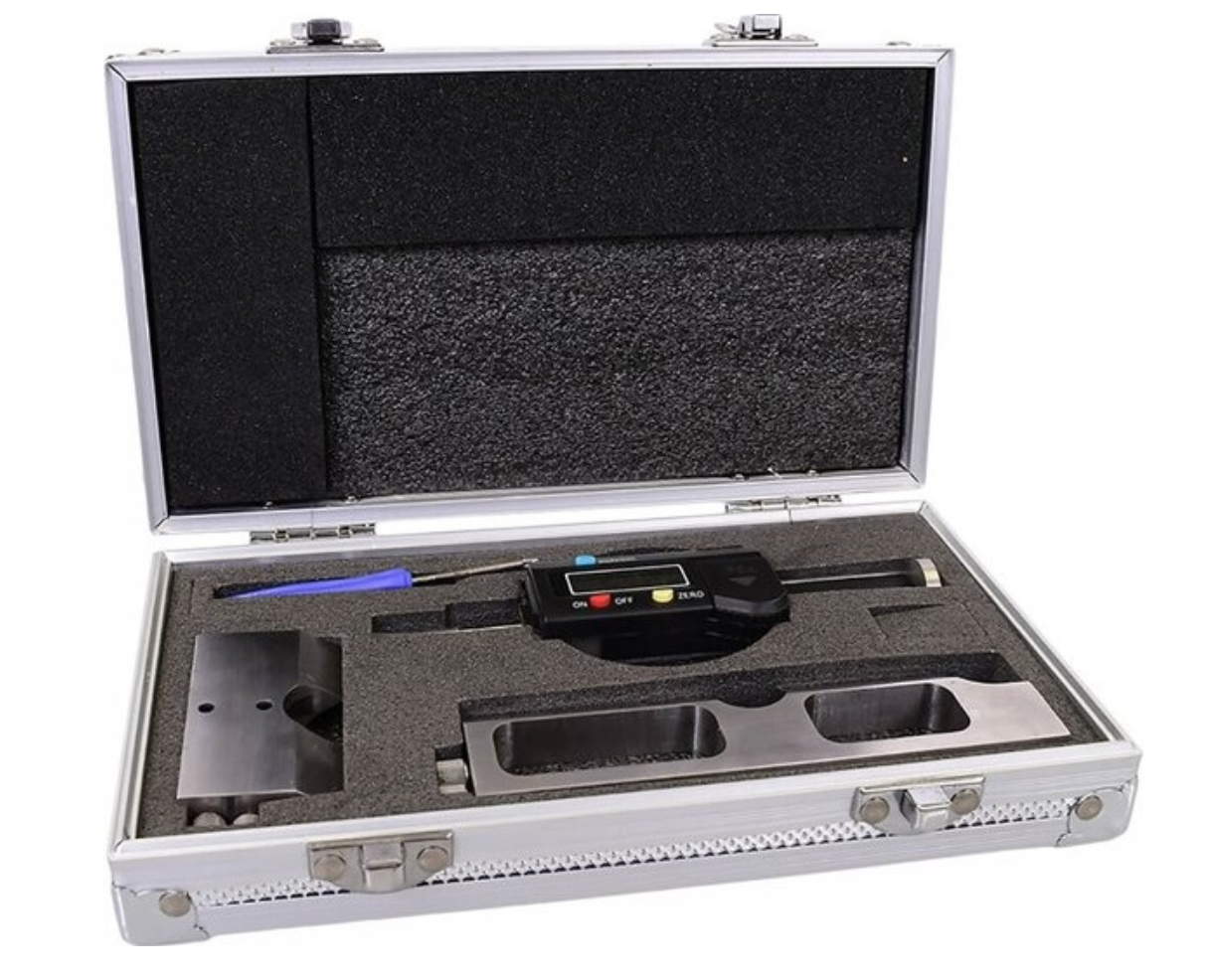

Kit Contents

Spring Loaded Digital Pit Gauge
Standard 2 3/8" Long Base
Two Position 4 7/8" Long Base
Two Sets of Attachment Screws
Hard Storage Case

Features

• 2 Exchangeable Knife Edge Bases: Standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions
• IP54 protection level for water spray, dust, etc.
• Accuracy of +/- 0.001"
• Can measure up to a 1.18" depth
• Made of hardened stainless steel
• Spring Loaded, 0.050" diameter probe
• Can zero at any position
• Button to switch between inches and mm
• 1 Year Limited Warranty

• Specifications

• Resolution	0.0004" (0.01 mm)
  Range	0-1.18" (0-30 mm)
  Accuracy	0.001" (0.03 mm)
  Protection Level	IP54
  Measuring Speed	≤ 1.5 m/sec.
  Standard Knife Edge Base Size	2 3/8" Long
  Two Position Knife Edge Base Size	4 7/8" Long with Center and Cantilever Positions
  Working Temperature	0-40 °C
  Working Relative Humidity	≤ 80%
  Storage Temperature	-10-60 °C
  Power	One Button 1.55 V Battery
