Strain gauge amplifier for sensors without integrated amplifier (mV/V output)

Convenient for all sensors of TS2, TSC and SF series Tension Sensors

Designed for DIN Rail Mounting

For use with sensors providing mV/V output
Provides ZERO and GAIN Adjustment Pots for Calibration purposes
Requires 15-24V DC power source

Kit Contents

• Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers
• Certificate of Compliance with the order 2.1 according EN 10204 free of charge
• Operating Instruction

• Features

• Provides ZERO and GAIN Adjustment Pots for Calibration purposes
• Output signals: Analog: 0 - 1 V DC (standard) | Analog: 0 - 10 V DC (option A2) | Current: 4 - 20 mA (option A3)
• DIN Rail Mounting
• Requires 15-24V DC power source
• CE certified with sensor connected
• LED Indicator shows Power to Amplifier

• Specifications

• Output signal	analog: 0 - 1 V DC /R (Last) ≥ 5kΩ analog 0 - 10 V DC (option) 4 - 20 mA instead of 0 - 10 V DC
  Input signal	mV/V
  Power supply	15 - 24 V DC, 50 mA
  Temperature range	10 - 45° C
  Air humidity	85 % RH, max.
  Housing	Plastics

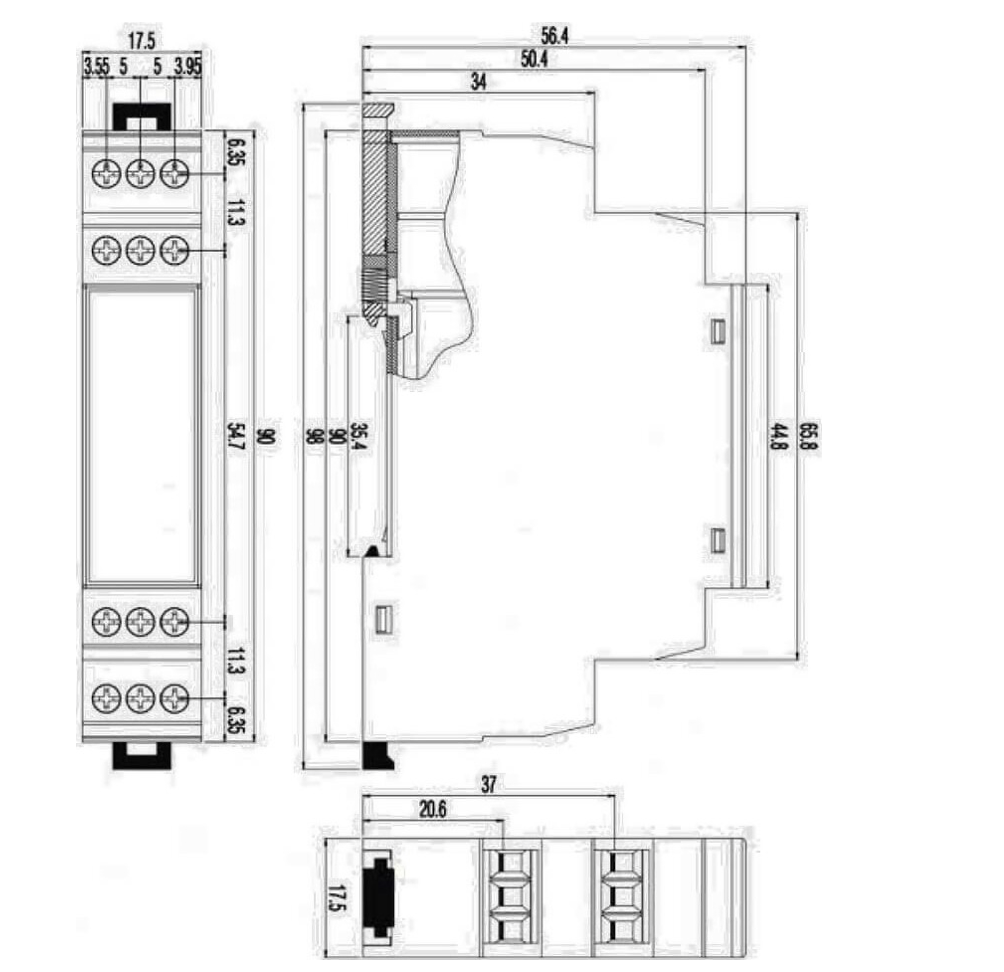

  Dimensions	90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box
  Weight, net (gross)	Approx. 53 g
