Description

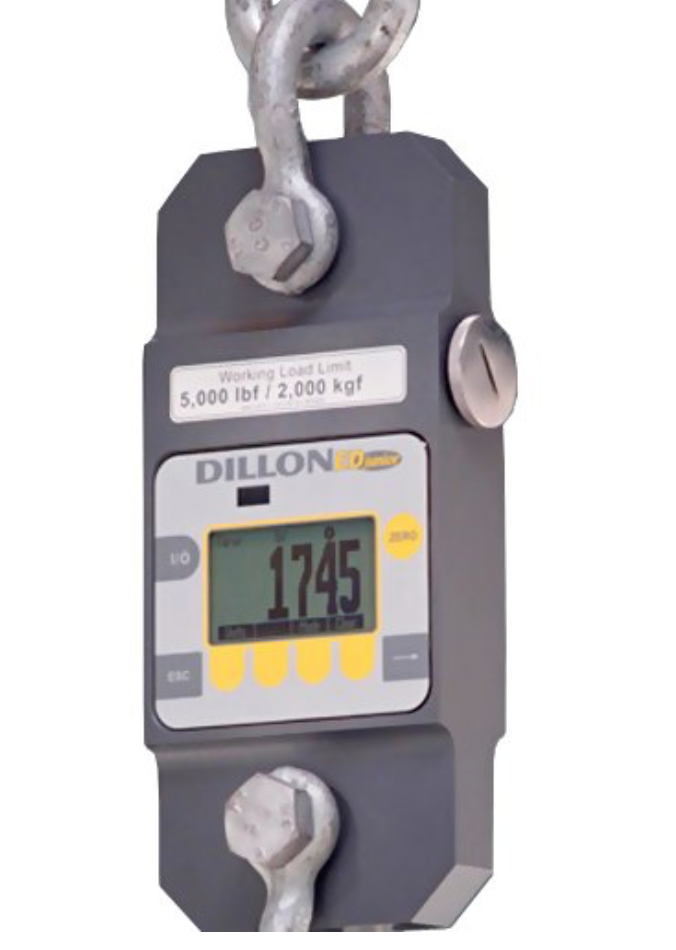

The Dillon EDjunior dynamometer gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.

The Dillon EDjunior dynamometer is designed to measure inline force / tension in a wide range of industrial applications. The backlit displays shows real-time and peak forces in lbf, kgf and Newtons measuring units.

Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the Dillon EDjunior Dynamometer an easy-to-position, highly mobile instrument with exceptional strength. The EDjunior offer an impressive factor of safety at all capacities.

Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the Dillon EDjunior's low power consumption, typical battery life is over 400 hours.

Kit Contents

• EDjunior Dynamometer
• Carrying Case
• Batteries
• Manual and calibration card

• Features

• Capacities from 2,500-25,000lb (1,000-10,000kg)
• Generous shackle openings mate with most hooks and hardware
• 0.2% accuracy
• High specification materials on all load components. Heat treated to tight tolerances
• Broadest range of capacities and resolutions are certain to fit your needs
• NIST Traceable Certificate Included
• Largest safety factor for overload protection and long life
• 2 Year Warranty
• Includes High strength case resists heavy blows
• CE Certified

Specifications
