TS-100
General Purpose Stainless-Steel Ultrasonic Sensors

These affordable, compact ultrasonic level sensors live up to the “ToughSonic®” name. Made in the USA, The TS-100 features durable construction with heavy-duty electronics epoxy potted into type 316 stainless steel housings. These rugged sensors have permanently attached cables and ruggedized piezoelectric transducers.

ToughSonic 100

ToughSonic® 100 50' Range, 2.5" NPT front & rear
Product code: TS-100.50-2.5npt
Minimum Purchase: 1 unit
Max Measuring Distance: 50 ft (15.2 m)
Optimum Measuring Distance: 33 ft (10 m)
Deadband: 0-12 in (0-303 mm)
Temperature Range: -40° to 158° F (-40° to 70° C)
Protection: NEMA 4X, IP 68, NEMA 6P
Area Classification: Ordinary Locations
Cable Length: 6.5 feet
Mount: 2.5 in NPT front & rear mount
Dimensions (L X Dia): 5.0 in (127 mm) x 2.50 in (63 mm)
Housing: PVDF Plastic

ToughSonic 100

ToughSonic® 100 50' Range, 1.5" NPT
Product code: TS-100.50-1.5npt
Minimum Purchase: 1 unit
Max Measuring Distance: 50 ft (15.2 m)
Optimum Measuring Distance: 33 ft (10 m)
Deadband: 0-12 in (0-303 mm)
Temperature Range: -40° to 158° F (-40° to 70° C)
Protection: NEMA 4X, IP 68, NEMA 6P
Area Classification: Ordinary Locations
Cable Length: 6.5 feet
Mount: 1.5 in NPT rear mount
Dimensions (L X Dia): 5.9 in (150 mm) x 2.50 in (63 mm)
Housing: 316 Stainless Steel

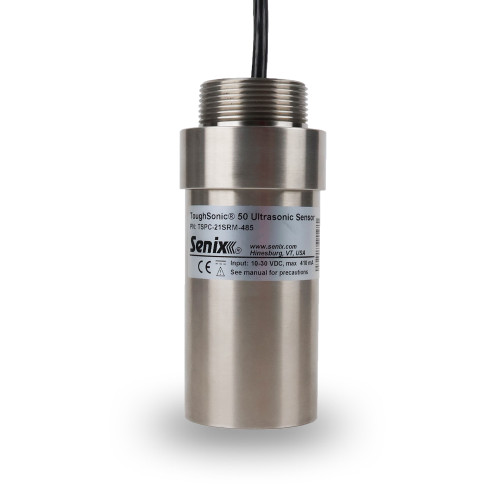

Legacy Part Number: TSPC-21SRM-485, TSPC-21SRM-232
Output: RS-485 or RS-232

Legacy Part Number: TSPC-25P-485, TSPC-25P-232
Output: RS-485 or RS-232

TSPC ：TSPC-15S-485、TSPC-15S-232、TSPC-21S-485、TSPC-21S-232、TSPC-30S1-485、TSPC-30S1-232

TS ：TS-21S-IV、TS-21S-ISK、TS-21S-ISR、TS-21S-SKV、TS-21S-SRV、TS-21S-SKSK、TS-21S-SRSR、TS-21S-SKSR、TS-15S-IV、TS-15S-ISK、TS-15S-ISR、TS-15S-SKV、TS-15S-SRV、TS-15S-SKSK、TS-15S-SRSR、TS-15S-SKSR、TS-30S1-IV、TS-30S1-ISK、TS-30S1-ISR、TS-30S1-SKV、TS-30S1-SRV、TS-30S1-SKSK、TS-30S1-SRSR、TS-30S1-SKSR
