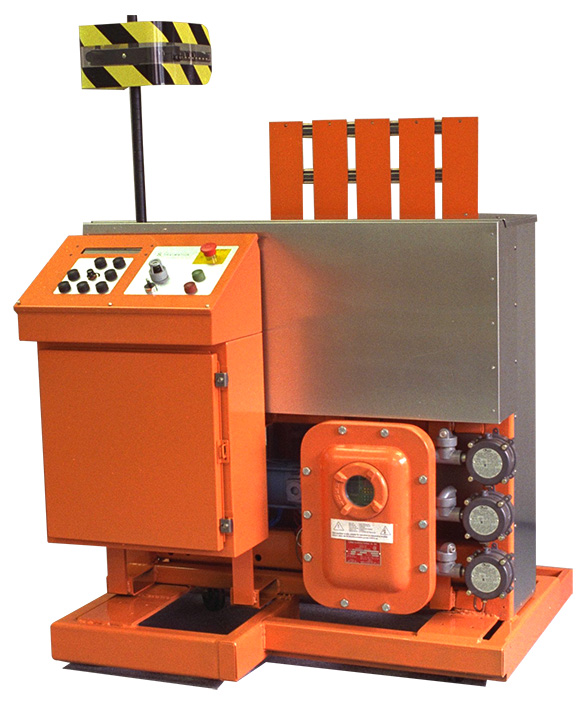

Standard 310940
Automatic Test Panel Spray Machine models are available from highly sophisticated custom units to a variety of standard models with various speed ranges and panel spray areas.

With all models, the operator can select all spray parameters including gun traverse speeds, panel indexing distance, spray on distance, and all other variables. Once the program is complete you may start the spraying sequence or assign a program number and place the information in the on-board computer memory for future recall.

The 310940 Series Machines are new in design and function from the ground up. The index mechanism is relocated to the left and near the front of the unit, away from the paint overspray area. Periodic maintenance and lubrication of the index mechanical components are reduced significantly. The new frame design allows easier access to place and remove panels.

More info    Features
Standard power requirements are 120 VAC, 50-60 hertz, single phase.
A two line, 24 character per line LCD display, a single data input knob and a few push buttons are the operator interface. The machine is controlled by functions and data from various menu selections. Many new functions have been added.
The new Model 310940 Series Machine will accept various option packages:

Multiple Segment Programming: This type of program will allow multiple segments to be combined into a complex painting procedure. Each segment may contain completely different painting parameters, i.e.: traverse speed, spray on distance, flash time at the end of a coat, etc. Scripts may contain up to 99 segments. The segments are painted sequentially.

Multi Segment Programming is required if selecting any of the following options:

Serial Communications: Script data can be loaded into this machine via serial communication from a personal computer through a fiber optic cable with Spraymation software using Windows 95 or higher. A number of automatic test panel machines may be connected to a single personal computer that would store all scripts. A portable personal computer which can be brought to the panel machine, may be used to enter and modify script data.
