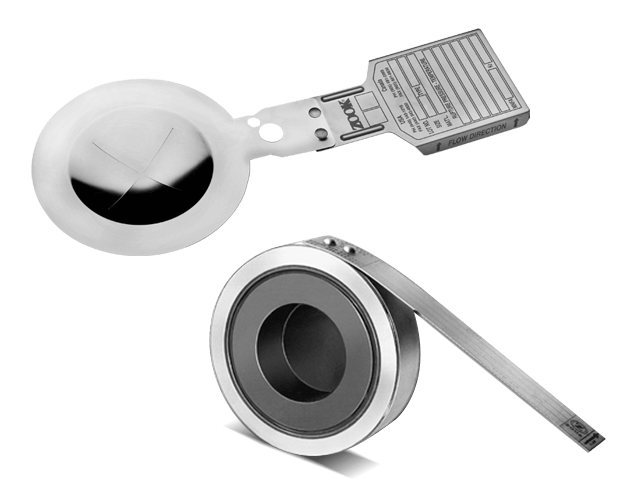

zookdisk Reverse Acting Disks RA4

PricePrice upon Request

Brandzookdisk

ModelRA4

Item No.

Designed for Non-fragmentation
Operating ratios up to 95% of the low end of burst tolerance
Disk design offers high cycle life
Suitable for liquid, gas, or two-phase applications
Standard manufacturing design range and total tolerance ensures marked rating on disk tag does not exceed the MAWP of equipment
Withstands full vacuum
Wide range of standard and exotic materials available
Sizes from 1” (25mm) through 12” (300mm)
Burst ratings from 2 psig (0.14 barg) to 40 psig (2.76 barg)
Unique alignment pin design ensures proper disk orientation into RAH Series disk holder
3-dimensional stainless steel tag permanently attached and engraved with complete disk specifications
Sanitary Disks
Full Selection of High Quality Products for Sanitary Piping Systems.
Sanitary Applications for Pharmaceutical, Biotechnology, Food & Beverage, and other industries

Whereas most rupture disks are designed to fit into holders, sanitary rupture disks are designed to fit between sanitary ferrules. They are also specially crafted with no crevices to allow substances to build up on the disk.

ZOOK’s revolutionary ZANITARY® series is an advanced sanitary disk designed for the biotechnology, pharmaceutical and food processing industries. This new patent pending technology incorporates completely new and unique design and manufacturing processes. Utilizing a material’s natural properties, this exclusive process delivers a superior fatigue-resistant and high-performance rupture disk. Without indentations or crevices meeting the demanding geometric 3-A requirements, the new ZANITARY disk design ensures that the process side is inherently smooth providing a high purity service.

Passivation finish to reduce the possibility of contamination
Standard surface finish 4 – 20 Ra µin (0.1 – 0.5 Ra µm)
Withstands full vacuum without the need of a separate vacuum support
Suitable for liquid, gas, or two-phase applications
Expected cycle life of this new disk technology is 30,000 with full vacuum cycling and approximately 1,000,000+ without full vacuum
Suitable for use with NovAseptic flange mountings
Cleaned for O2 service available
Nitrogen bagging available
Suitable for Clean-in-place (CIP) applications
Electropolishing available meeting ASME BPE SF4
Complies ASME BPE Standard
ASME UD, CE (PED), KOSHA and TÜV compliance available
Sizes from 1” (25mm) through 4” (100mm)
Looking for a welded custom solution? Our welded cartridge solution combines the ZANITARY® product with ZOOK’s in-house welding technology for a true ‘plug and play’ assembly. Additionally, a cartridge approach creates hermetic seals between disk and ferrule components upstream and downstream of cartridge as well as eliminates the effect of misaligned or improper line loading on rupture disks.
