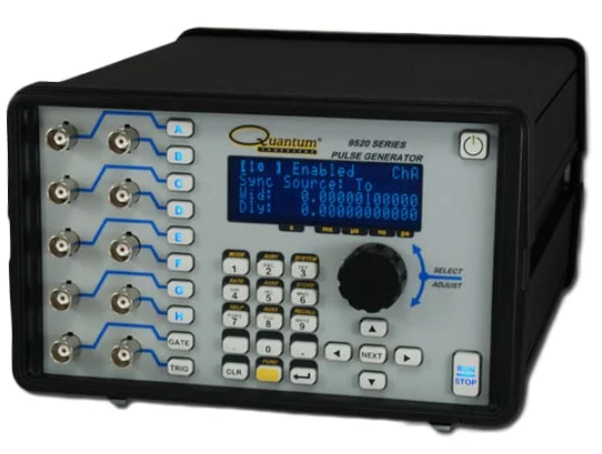

9520 Series
Pulse Generators for Timing and Synchronization
The 9520 series heightens the capabilities of pulse generation and digital delay to new levels. Cost-effective yet extremely capable, this instrument provides solutions to generate and synchronize multiple pulses and triggers for a wide variety of applications from simple to complex.
The 9520 series has the unique capability of offering differing rates for all the channels using new clock-divider functions, and provides up to eight independent digitally controlled channels with width, delay, rate, and amplitude control on each output.
9530 Series
Digital Delay Pulse Generator
An innovative approach to high-quality timing and synchronizing at affordable pricing. The 9530 Pulse Generator provides precision timing and synchronization to effectively trigger any series of events or necessary equipment with four or eight independent outputs, dual inputs with gate/trigger or optional dual trigger, and external clock reference input.
The 9530 can accept a low amplitude clock frequency down to 20 mV, up to 100 MHz. This allows phase-lock directly to a laser photodiode signal, providing system timing synchronicity with the laser with a very low jitter (< 50 ps). Complimentary Labview Drivers are available.
