0.020" & 0.030" Centers

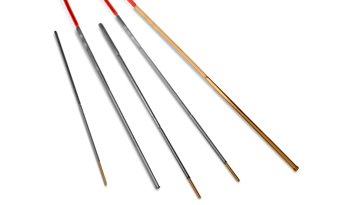

The Micro Probe Series ranges in pitch from 0.20" (0.51 mm) to 0.030" (0.76 mm) and are typically between 0.50" to 1.00" in length. Smiths Interconnect offers a wide range of Spring Contact Probes to meet your testing needs and has been recognized as a world leading provider for over 40 years.Features & Benefits
Fine pitch applications
Quad-0 and Quad-00 Series probes and receptacles
Between 0.30 and 0.50 A current ratings
0.70 to 0.75 oz. spring forces
≤ 0.900" (22.86 mm) overall lengths
IDI Spring Probe technology
Product Specifications
Probe    Probe
OAL    Max
Travel    Mating
Receptacle
Quad-00
Series    0.740
(18.80)    0.100
(2.54)    Quad-00
Series
Quad-0
Series    0.900
(22.86)    0.100
(2.54)    Quad-0
Series
