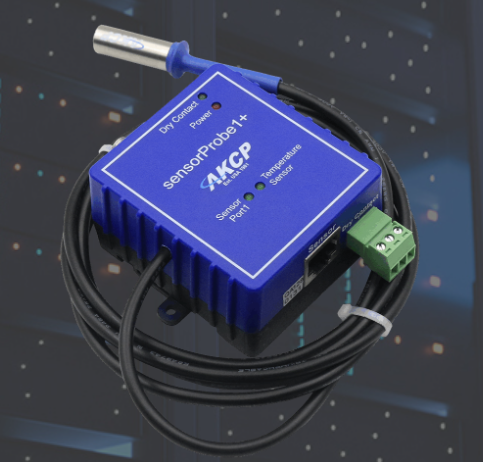

The sensorProbe1+ (SP1+) is a compact device. Equipped with a dry contact I/O, an intelligent sensor port, and a built-in temperature sensor on 5ft cable. The built in temperature sensor has option of being NIST2 (internal calibration check) or NIST3 (internal calibration check with failover). An optional dual temperature and humidity sensor is also available. It runs the same user interface as the rest of the sensorProbe+ product line, with all the same features such as MQTT, IPV6, SNMPV3, Radius, TACACS, Modbus TCP/IP, BACnet and up to 80 virtual sensors (Additional licenses may apply)

Connect the sensor splitter box with cabinet thermal maps and contactless current meter, and you have a complete monitoring solution for your rack. Monitor temperature front and rear, top middle, and bottom. Check your ∆T, humidity, and current consumption. Utilize the dry contact for door contacts, and virtual sensors to monitor third party devices installed in the rack.

sensorProbe1+ is available with a variety of power options such as PoE, 5VDC, 12-24 and 40-60VDC inputs, including redundant dual power inputs.

The dry contact I/O can be changed by pre order to MODBUS RS485, CANBUS or LINBUS for integration with third party devices, or monitoring systems.
