Pressures from 2 to 50 psi gauge
Accuracy @ 25°C:
- ≤ ± 0.25% BFSL
- ≤ ± 0.5% BFSL (2 psi)
≤ ±0.25% of full scale stability
50 million pressure cycles
2x minimum overpressure
5x or 250 psi (whichever is less) burst pressure
-40 to 185°F (-40 to 85°C) operating temperature
32 to 131°F (0 to 55°C) compensated temperature
TC Zero:
- ≤ ± 1% of full scale
- ≤ ± 2% of full scale (2 psi)
TC Span:
- ≤ ± 1% of full scale
- ≤ ± 2% of full scale (2 psi)
EMI/RFI protection

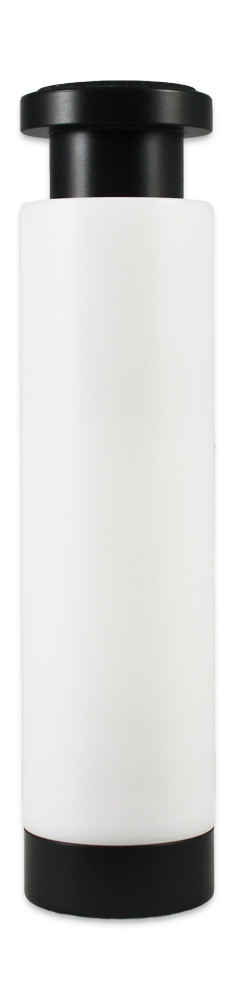

IP68 ratingThe CS15 Non-Clogging Submersible Pressure Transducer is designed for liquid level measurement in turbulent tanks and tanks with viscous medias such as wastewater lift stations. A Hastelloy C276 diaphragm, stainless steel construction and an ETFE cable jacket allow for installation in a wide variety of liquids. The heavy-duty steel cage anchors the sensor at the bottom of the tank to ensure accurate level readings as well as acting as a barrier between solids in the tank and the flush diaphragm of the sensor. A vent tube runs the length of the cable and quickly equalizes the barometric pressure within the sensor body. The CS15 is available in various output signals including 4-20mA for long distance transmissions and voltage outputs for low power, low current consumption applications.

The CS15 was carefully engineered to withstand some of the toughest environments. With a thickness of 1 to 1.5 mils, the diaphragm is the thinnest component of the transducer. To help protect this critical component, Hastelloy C276 (UNS N10276) is the standard diaphragm material. This material is a super nickel-molybdenum-chromium alloy offering excellent corrosion resistance, which prolongs the life of the transducer.
