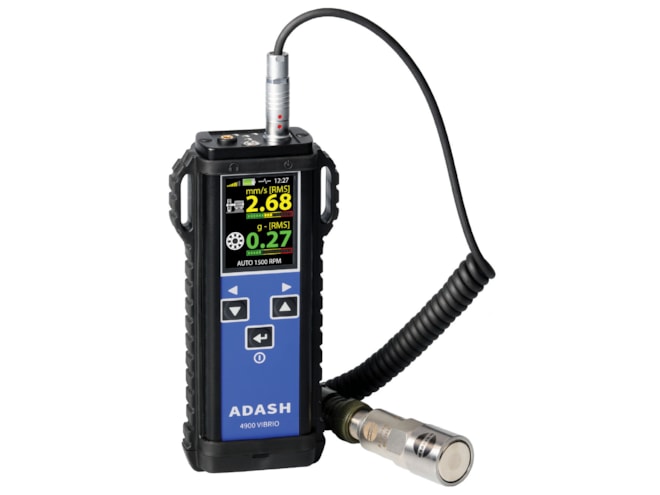

Adash VIBRIO Vibration Analyzer Kit A4900
PricePrice upon Request
BrandAdash
Model A4900
Item No.
- Adash A4900 VIBRIO Vibration Analyzer:
- Input: 1 x ICP powered accelerometer
- Input range: 60g peak with standard 100 mV/g sensor
- Output: 1 x AC signal 8 Ω / 0.5 W for external headphones (signal listening)
- Measurements (including but not limited to):
- Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
- Velocity Peak: 10 - 1 000 Hz [mm/s, ips]
- Acceleration RMS: 500 - 16 000 Hz [g]
- Acceleration Peak: 500 - 16 000 Hz [g]
- Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
- Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]
- Displacement RMS: 2 - 100 Hz [μm, mil]
- Displacement 0 to Peak: 2 - 100 Hz [μm, mil]
- Displacement Peak to Peak: 2 - 100 Hz [μm, mil]
- LED stroboscope/torch
- Vibration stethoscope
- Memory: 4 MB available with VIBRIO M Kits
- Data storage: Off-Route, route with DDS software for VIBRIO M (free download)
- USB C interface
- Color graphic display
- Battery: 16 hours non-IS, 8 hours IS
- Weight:
- Non-IS: 380g (590g with cable, sensor and magnet)
- IS: 330g (540g with cable, sensor and magnet)
- Heavy-duty aluminium case
- ATEX (optional): II 2 G Ex ib IIC T4 Gb
- Adash 4900 VIBRIO/ M/ M Ex Vibration Analyzer
- Top-exit accelerometer
- Coiled cable for sensor
- Flat magnetic base
- Finger tip probe
- Hard-shell plastic case (Non-Pro Kits only)
- Earbuds (Non-Pro Kits only)
- 4MB memory (M & Pro Kits only)
- VIBRIO Pro Transport Case (Pro Kits only) [4900 STC]
- Industrial headphones (Pro Kits only)
- Secondary cable with BNC connection (Pro Plus Kit only)
