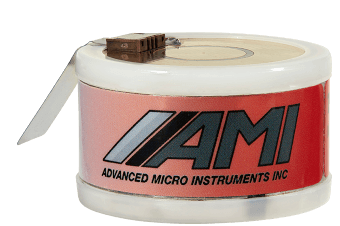

Oxygen Sensors
Through years of intensive research and development, AMI offers a proprietary electrochemical oxygen sensor that yields an extremely rapid response, high reliability, and longer product life. AMI also perfected proprietary manufacturing techniques that resolve many of the common problems found in other electrochemical oxygen sensors.
AMI’s oxygen sensors provide an industry-leading resistance to H2S, in concentrations up to 500 ppm. This breakthrough eliminates the need for a maintenance intensive H2S scrubber for the sample gas.
Every trace and percent oxygen sensor manufactured in our Costa Mesa, California facility undergoes a battery of performance tests, including response times, noise, drift and linearity, across multiple temperature ranges, to insure they meet our strict quality standards.
Substituting a lesser oxygen sensor in your high-performance AMI oxygen analyzer will severely degrade the performance of your analyzer was well damage the analyzer and void the warranty.
| T-2 Trace |
T-4 Trace |
P-2 Percent Discontinued |
P-3 Percent |
P-4 Percent |
P-5 Percent |
|
| Recommended O2 Measurement Range | 0 - 10,000 ppm | 0 - 10,000 ppm | 0 - 50% | 0 - 25% | 0 - 100% | 0 - 25% |
| Minimum Range | 0 - 5 ppm | 0 - 5 ppm | 0 - 1,000 ppm | 0 - 1,000 ppm | 0 - 1.0% | 0 - 1,000 ppm |
| Sensitivity | 0.05 ppm | 0.05 ppm | 100 ppm | 100 ppm | 1,000 ppm | 100 ppm |
| Special Conditions | <10 ppm H2S 100% CO2 | <500 ppm H2S 100% CO2 | O2 in inert gas | Up to 100% CO2 | Enriched Oxygen | <500 ppm H2S 100% CO2 |
