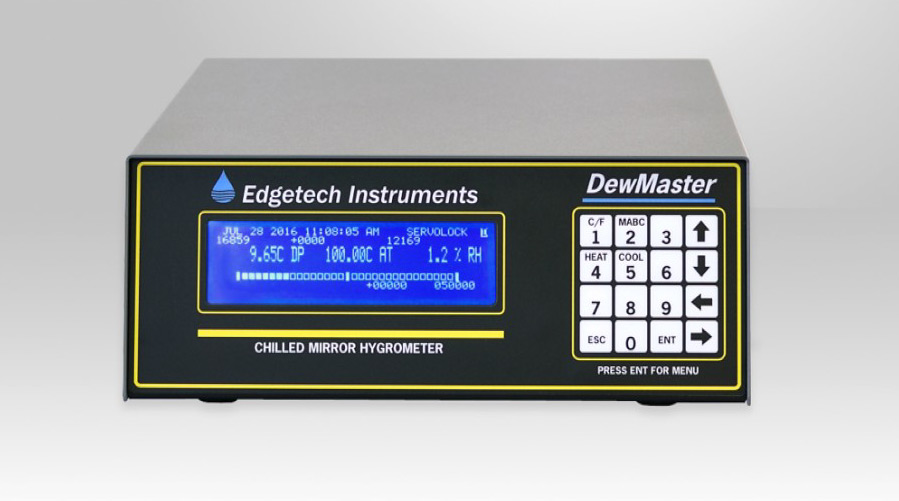

edgetechinstruments DewMaster Chilled Mirror Hygrometer Mirror Hygrometer
Brand: edgetechinstruments
Model: DewMaster Chilled Mirror Hygrometer
Description
The DewMaster Chilled Mirror Hygrometer is a high-performance humidity measurement system designed for environments where accuracy, reliability, and traceability are non-negotiable. Utilizing the chilled mirror hygrometer principle, DewMaster delivers direct, NIST-traceable dew point measurements that meet the rigorous demands of pharmaceutical clean rooms, environmental test chambers, semiconductor fabrication, and aerospace labs.
Key Features
| Feature | Specification & Options |
|---|---|
| Sensor Configurations | Flow-through, insertion, or corrosion-resistant; air, fan, or liquid cooled |
| Measurement Range | –25 °C to –80 °C up to +75 °C dew/frost point depending on sensor model |
| Accuracy | ±0.2 °C standard, ±0.1 °C optional (dew/frost point) |
| Relative Humidity Range | 5% to 95% RH (non-condensing conditions) |
| PPMv Range | 0 to 999,999 parts per million by volume (non-condensing) |
| Output Options | 4–20 mA, 0–5 VDC, RS-232; programmable SPDT alarms |
| Cooling Methods | Ambient air, fan-cooled, or auxiliary liquid cooling |
| Mounting Options | Benchtop, rack mount, or NEMA 4X wall enclosure |
| Sensor Materials | Anodized aluminum or 316 stainless steel |
| Calibration | ISO/IEC 17025-accredited, NIST-traceable |
